glue filling machine, adhesive filling machine, paint brush feruel glue filling machine china suppliers

  • 2 years warranty
  • Piston pump with servo motor control
  • HS code:8422303090
  • 316L+304 Stainless steel
    • glue filling machine  , adhesive filling machine  , super glue filling machine  , cyanoacrylate filling machine  , automatic glue filling machine  , 502 glue filling machine  , super glue gel filling machine  , super glue filling machine singal head  , super glue liquid filling machine  , super-glue-filling-machine  , pvc glue filling machine  , epoxy glue filling machine  , spray glue filling and sealing machine  , glue making and filling machine  , pvc adhesive glue filling machine  , filling machine for epoxy glue  , glue filling and sealing machine  , super glue stick filling machine  , paint brush feruel glue filling machine  , ab glue filling machine  , glue bottle filling machine  , sofa glue filling and sealing machine  , glue lequid filling machine  , glitter glue filling machine  , flash glue stick filling machine  , super glue filling and capping machine  , paint brush feruel glue dispensing filling machine  , cyanoacrylate glue filling machine  , uv glue filling machine  , filling machine for glue  , double liquid automatic glue filling machine  , tin spray glue filling sealing machine  , sofa glue filling and seaming machine  , led glue filling machine  , spray glue filling machine  , adhesive glue filling machine  , wig glue filling machine  , viscous glue filling machine  , polyurethane glue filling machine  , lace glue filling machine  , glue stick filling machine  , white glue filling machine  , pva glue stick filling machine  , paint brush glue filling machine  , automatic ab glue filling machine  , ab glue automatic filling machine
    Inquiry Send Email

    Description

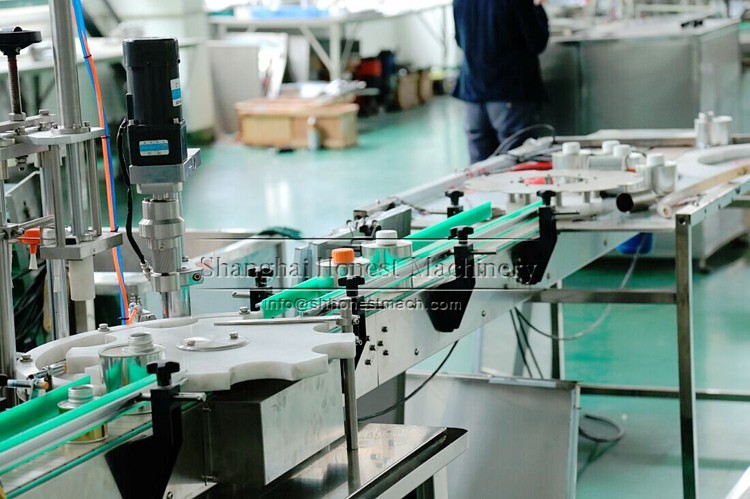

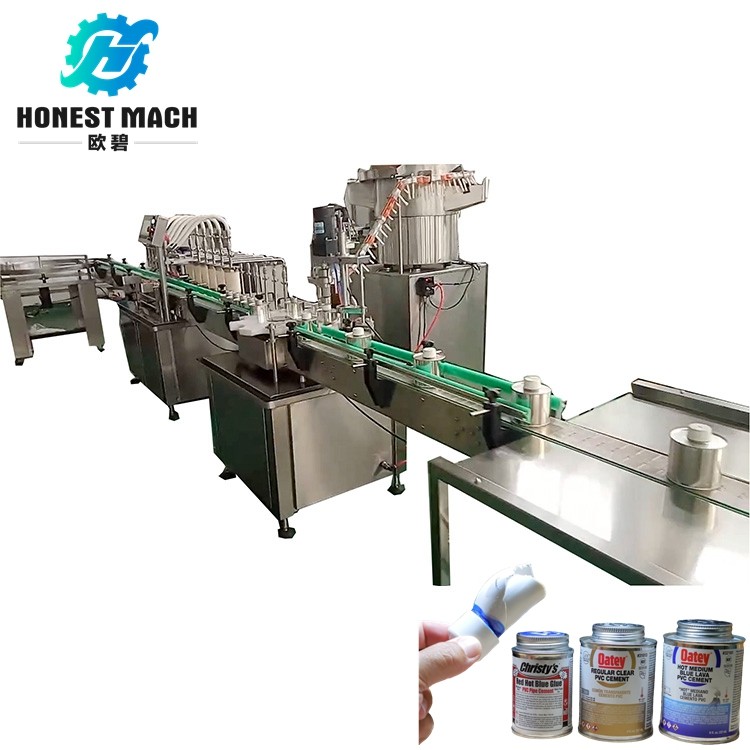

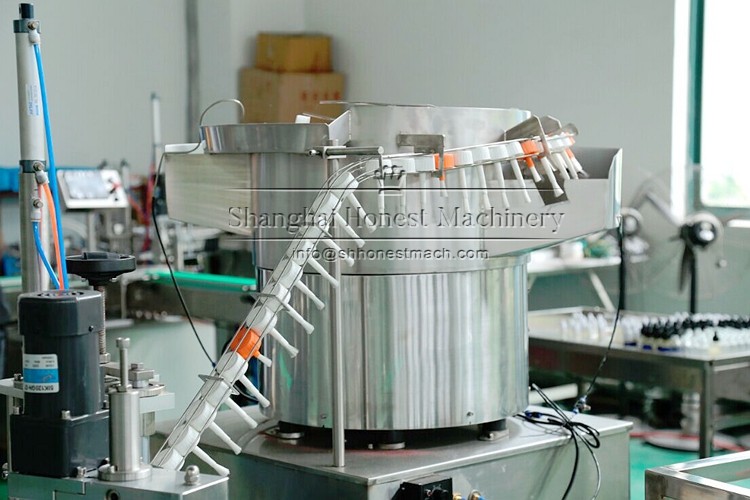

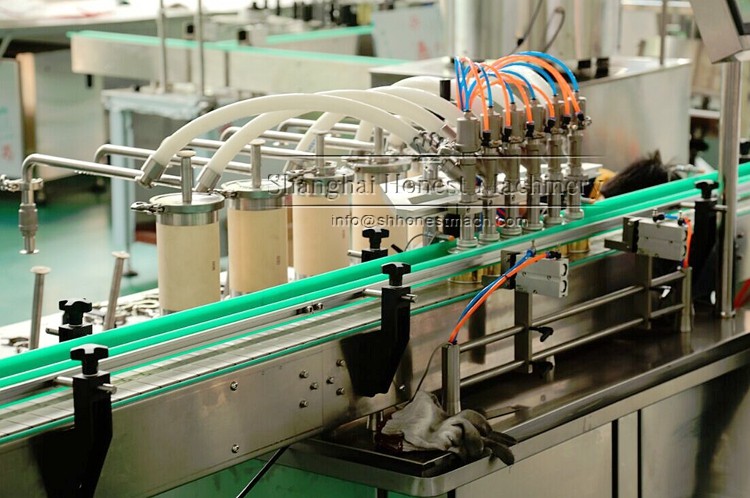

    The glue filling machine is manufactured with a heavy duty 304 stainless steel, tigwelded tube frame and is available with 1 to16 Fill Heads.It also comes standard with PLC Controls and touch screen HMI,a 304 stainless steel reservoir, and Pneumatic Indexing Gates, plus many more features. Options are available for even more versatility.
    The disinfectant filling machine/sterilizer liquid filling machine is commonly used in the food service, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various filling projects.

    Model
    		Glue filling machine
    Filling volume
    		 100-5000ml
    Filling nozzles
    		 1-12 nozzles for your optional
    Filling type
    		 Piston pump, flow meter(for your optional)
    Production capacity
    		10-100 bottles per minute(for your optional)
    Filling accuracy
    		 ±1%(according to product)
    Capping rate
    		 ≥99.5%
    Power supply
    		 1 phase,220V 60/50Hz or 3 phase 380V
    Power
    		3-5Kw
    Total dimension
    		2450 * 1350 * 1950mm(Can be customized)
    Highlight:
    1.Suitable for various low viscosity material,and various shaped containers
    2.All connections adopt quick release joint, easy to dismantle and maintain, reduce the cost of the use and maintenance, save the time
    3.With self-cleaning system that can do cleaning automaticlly
    4.HMI control,easy-to-use intuitive HMI touch screen controls for your operator
    5.No container/no filling,no container/no cappping
    6.Machine with overflow trough, avoid material leak,, ensure a clean and safe working environment.
    7.Reduced labour costs
    8.Whole machine made of SS304, with grace appearance.material contact part made of SS316.
    9.Easy to adjust for different tape and shaped container,10 minutes can change all the parts.
